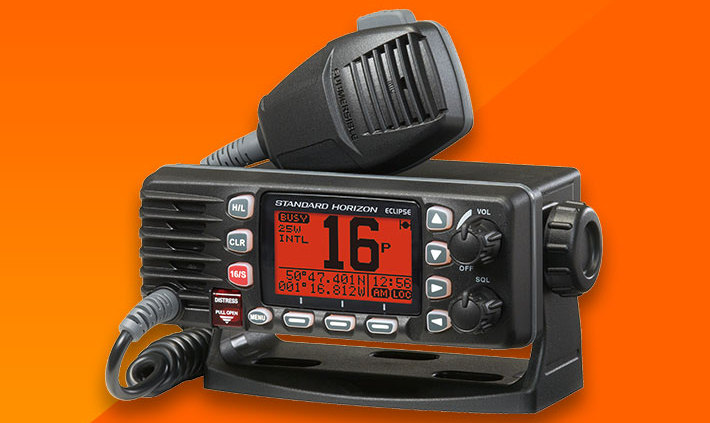

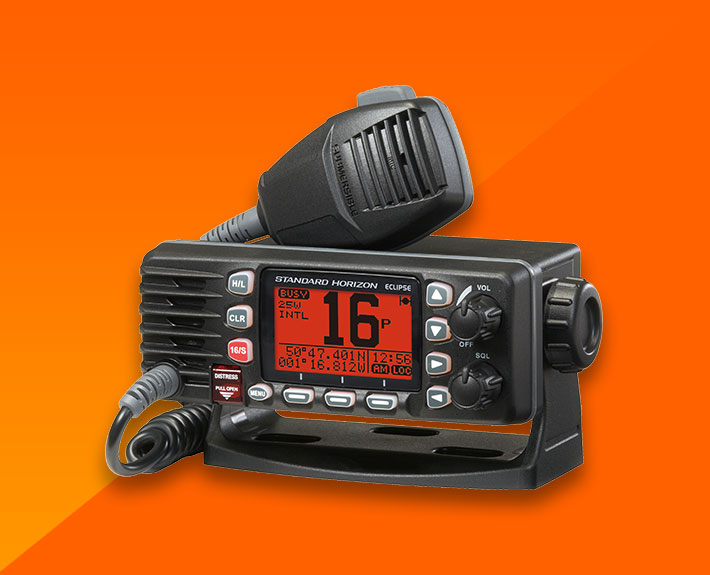

NEW Standard Horizon GX1300E
NEW Standard Horizon GX1300E ECLIPSE Ultra Compact Fixed Mount Class D DSC VHF
Radio Features:
- Affordable Ultra Compact Fixed Mount VHF radio
- Meets ITUR M.49313 Class D DSC (Digital Selective Calling)
- Submersible IPX8 waterproof rating (1.5M or for 30 minutes)
- Easy to Operate Icon/Menu System
- Oversized Full dot matrix display (31 mm x 55 mm)
- DSC Distress, Individual, Group, All Ships, Position Request and DSC Test Call
- GPS position and Time shown on dot Matrix Display when connected to a GPS Receiver
- NMEA 0183 Input and Output Connections to a Compatible GPS Chart Plotter
- User programmable soft keys for easy menu operation
- Automatically poll the GPS position of up to 4 ships using DSC
- All International, USA and Canadian Marine Channels
- Preset key used to recall up to 10 favorite channels
- ATIS mode for European Inland Waterways
- Programmable Scan, Priority Scan, and Multi Watch (Dual Watch or Triple Watch)
Specifications:
- Frequency Ranges: RX 156.050 to 162.000 MHz TX 156.025 to 157.425 MHz
- Channels: All International, USA, and Canadian
- Input Voltage: 13.8 VDC ±20 %
- RF Power Output: 25 W (Hi), 1 W (Lo)
- Water Protection Rating: IPX8
- Overall Dimensions (W x H x D): 155 x 60 x 150 mm w/o Knob
- FlushMount Dimensions (W x H x D): 131 x 51 x 140 mm
- Weight: 870 g
- Warranty: 2 Years
