NSR NVX1070F-NVA100 active navtex antenna

NSR

NVX1070F – NVA100

Navtex Antenna

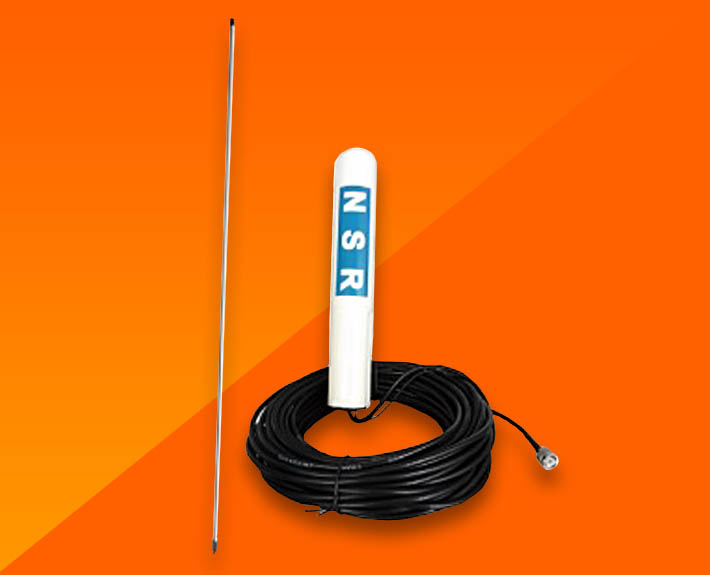

The NSR NVX1070F – NVA100 active navtex antenna consists of an active antenna (amplifier) NVX1070F and a NVA100 glassfibre antenna, complete with 20mtr cable.

More information about this product?

Feel free to call us on +31 (0)180 – 62 24 42 or send us an e-mail.

Key Features

The NSR NVX1070F – NVA100 active navtex antenna consists of an a pre-amplifier NVX1070F and a NVA100 glassfibre antenna, complete with 20mtr cable.
This antenna can be used for / replace all commonly known navtex antennas for all of the existing navtexes.

Specifications

Part No.: NXA100 & NVX1070F
RX Freq: 518kHz, 490kHz, 4209kHz
Bandwidth: 504kHz±20kHz，4209.5kHz±100kHz
Radiation Pattern: Omni-directional
Polarization: Vertical

Impedance: 50Ω/TNC
Cable Length: 20m RG58
Input Voltage: 7～9V
IP Grade: IP66
Temperature Range: -30℃～+55℃
Size: Φ44×1456(H) mm (Amplifier+Antenna)
Weight: abt 2kg (Amplifier+Antenna)
Amplifier Case: Special ABS
Whip Antenna: Fiberglass Epoxy
